產品型號
產品類型

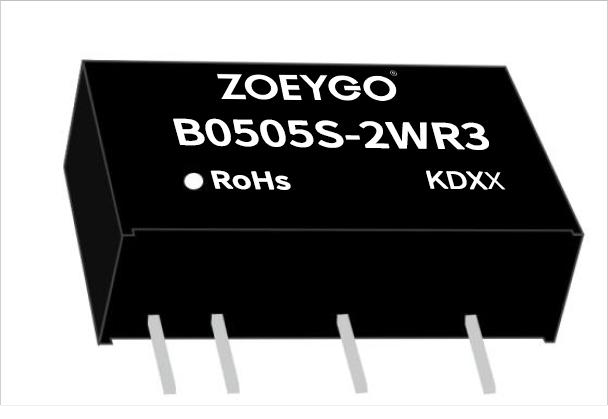

BXXYYS-2WR3
文檔下載
以下型號參數僅供參考，詳細技術參數請以技術規格書為準。
| 產品型號 | 功率(W) | 輸入電壓(VDC) | 輸出電壓(VDC) | 輸出路數 | 隔離電壓(VAC | 封裝類型 | 封裝尺寸 | 測試報告 |
| B0505S-2WR3 | 2 | 4.5-5.5 | 5 | 1 | 1500 | SIP | 19.5*10*7 | |
| B0512S-2WR3 | 2 | 4.5-5.5 | 12 | 1 | 1500 | SIP | 19.5*10*7 | |
| B0515S-2WR3 | 2 | 4.5-5.5 | 15 | 1 | 1500 | SIP | 19.5*10*7 | |
| B0524S-2WR3 | 2 | 4.5-5.5 | 24 | 1 | 1500 | SIP | 19.5*10*7 | |
| B1205S-2WR3 | 2 | 10.8-13.2 | 5 | 1 | 1500 | SIP | 19.5*10*7 | |
| B1212S-2WR3 | 2 | 10.8-13.2 | 12 | 1 | 1500 | SIP | 19.5*10*7 | |
| B1215S-2WR3 | 2 | 10.8-13.2 | 15 | 1 | 1500 | SIP | 19.5*10*7 | |
| B1224S-2WR3 | 2 | 10.8-13.2 | 24 | 1 | 1500 | SIP | 19.5*10*7 | |
| B1505S-2WR3 | 2 | 13.5-16.5 | 5 | 1 | 1500 | SIP | 19.5*10*7 | |
| B1512S-2WR3 | 2 | 13.5-16.5 | 12 | 1 | 1500 | SIP | 19.5*10*7 | |
| B1515S-2WR3 | 2 | 13.5-16.5 | 15 | 1 | 1500 | SIP | 19.5*10*7 | |
| B1524S-2WR3 | 2 | 13.5-16.5 | 24 | 1 | 1500 | SIP | 19.5*10*7 | |
| B2405S-2WR3 | 2 | 21.6-26.4 | 5 | 1 | 1500 | SIP | 19.5*10*7 | |
| B2412S-2WR3 | 2 | 21.6-26.4 | 12 | 1 | 1500 | SIP | 19.5*10*7 | |
| B2415S-2WR3 | 2 | 21.6-26.4 | 15 | 1 | 1500 | SIP | 19.5*10*7 | |
| B2424S-2WR3 | 2 | 21.6-26.4 | 24 | 1 | 1500 | SIP | 19.5*10*7 |
